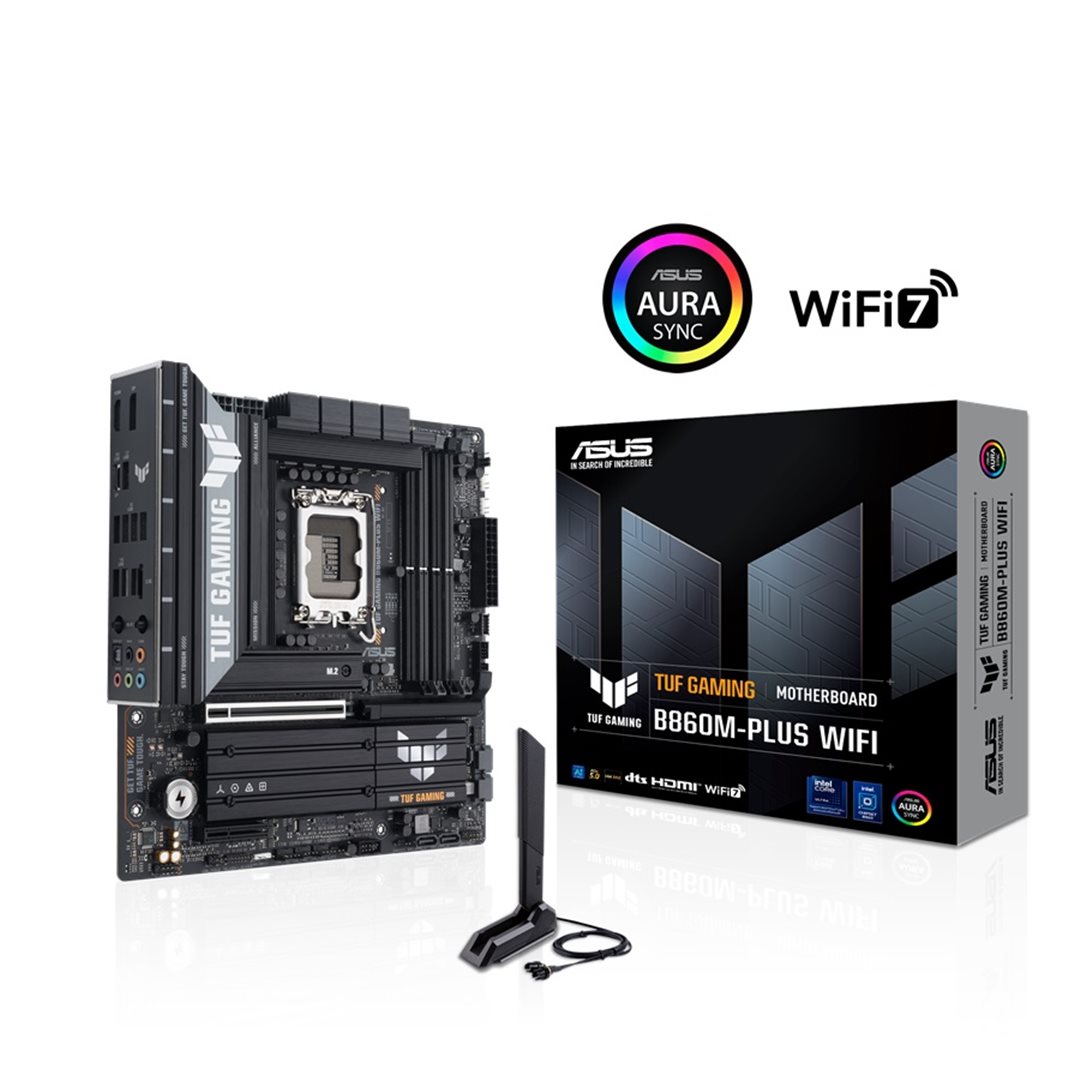

ASUS TUF GAMING B860M-PLUS WIFI

ASUS TUF GAMING B860M-PLUS WIFI

• mATX Form Factor

CPU: Support Intel Core Ultra Processors (Series 2) - LGA1851, Support Intel Turbo Boost Technology 2.0 a Intel Turbo Boost Max Technology 3.0

Chipset: Intel® B860 Chipset

Pamäť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)

• Dvojkanálová pamäťová architektúra
• Osadenie DIMM
• Podporuje pamäťový modul Intel® Extreme Memory Profile (XMP)
• ASUS Enhanced Memory Profile III(AEMPIII)

Grafické porty:

• 1 x DisplayPort
• 1 x HDMI™ port
• 1 port USB 20 Gbps (USB Type-C®) supports DisplayPort video output

Rozširujúce sloty:
Intel® Core™ Ultra Processors(Series 2)

• 1 x PCIe 5.0 x16 slot

Intel® B860 Chipset

• 1 x PCIe 4.0 x4 slot

Úložný priestor:
Total supports 3 x M.2 slots a 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors(Series 2)

• M.2_1 slot (Key M), typ 2280 (supports PCIe 5.0 x4 mode)

Intel® B860 Chipset

• M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet:

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Pripojenie a Bluetooth:

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps ??transfer rate.
• Bluetooth® v5.4

USB:
Zadné USB (Total 7 ports)

• 1 x USB 20 Gbps port (1 x USB Type-C®)
• 2 x USB 10 Gbps ports (2 x Type-A)
• 4 x USB 5Gbps porty (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)

Predné USB (Total 7 ports)

• 1 x USB 10Gbps konektor (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 headers support 2 additional USB 2.0 ports

Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-bit/192 kHz playback

Audio Features

• Audio Shielding
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers

Vstupy/výstupy zadného panela:

• 1 x USB 20 Gbps port (1 x Type-C® USB s DP Alt mode)
• 2 x USB 10 Gbps ports (2 x Type-A)
• 4 x USB 5Gbps porty (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Interné vstupy/výstupy:
Ventilátory a chladenie:

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers

Napájanie:

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors

Úložisko:

• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB:

• 1 x USB 10Gbps konektor (supports USB Type-C® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 port

Rôzne:

• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x Predný panel audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thunderbolt™ (USB4®) header

Príslušenstvo:
Káble:

• 2 x SATA 6Gb/s cables

Rôzne:

• 1 x ASUS WiFi Q-Antenna
• 2 x M.2 Rubber Packages
• 1 x TUF Gaming sticker
• 1 x Screw package for M.2 SSD

Dokumenty:

• 1 x Quick start guide
