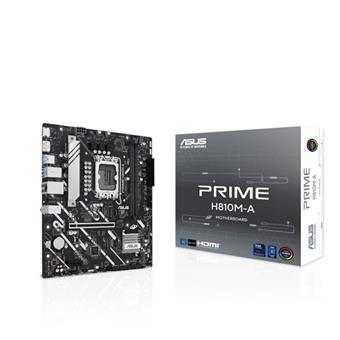

ASUS PRIME H810M-A-CSM

ASUS PRIME H810M-A

• mATX Form Factor

CPU: Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 - Supports Intel® Turbo Boost Technology 2.0 a Intel® Turbo Boost Max Technology 3.0

Chipset: Intel® H810 Chipset

Pamäť: 2 x DIMM slots, max. 128GB, DDR5

• Supports up to 6400MT/s, bez ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile II (AEMP II)

Grafické porty:

• 1 x DisplayPort
• 1 x HDMI™ port

Rozširujúce sloty:
Intel® Core™ Ultra Processors (Series 2)

• 1 x PCIe 4.0 x16 slot

Intel® H810 Chipset

• 1 x PCIe 4.0 x1 slot

Úložný priestor:
Total supports 2 x M.2 slots a 4 x SATA 6Gb/s ports
Intel® H810 Chipset

• M.2_1 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x2 mode)
• 4 x SATA 6Gb/s ports

Ethernet:

• 1 x Intel® 1Gb Ethernet port
• ASUS LANGuard

Pripojenie a Bluetooth:
V-M.2 slot only (Key E, CNVi & PCIe) - Wi-Fi module aj so sold separatelmi.
USB:
Zadné USB (Total 7 ports)

• 2 x USB 10 Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)

Predné USB (Total 7 ports)

• 1 x USB 5Gbps konektor (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC

• Podporuje: Detekcia konektorov, Multi-streaming, Prepínanie konektorov na prednom paneli
• Podpora prehrávania až 24 bitov/192 kHz

Zvukové funkcie

• Tienenie zvuku
• Prvotriedne zvukové kondenzátory
• Vyhradené zvukové vrstvy na doske plošných spojov

Vstupy/výstupy zadného panela:

• 2 x USB 10 Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Vertical M.2 slot (Key E)
• 1 x Intel® 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 klávesnica/mouse combo port

Interné vstupy/výstupy:
Ventilátory a chladenie:

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers

Napájanie:

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector

Úložisko:

• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB:

• 1 x USB 5Gbps konektor (supports USB Type-C® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Rôzne:

• 3 x Addressable Gen2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin Front Panel System header

Príslušenstvo:
Káble:

• 2 x SATA 6Gb/s cables

Rôzne:

• 1 x I/O shield
• 1 x Screw package for M.2 SSD

Dokumenty:

• 1 x Quick start guide
